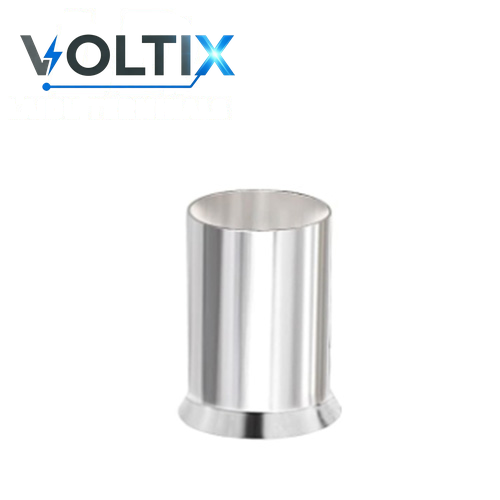

EN Non-Insulated Wire Ferrules
Our factory manufactures non-insulated wire ferrules in the EN Non-Insulated Wire Ferrules series for consolidating stripped conductor strands before insertion into a compatible clamp terminal. This family contains 23 listed options using AWG references. Compare the model, conductor and construction fields below, then send the connection drawing, quantity, packaging and destination requirements for factory matching and quotation.
描述
Product overview
The non-insulated wire ferrules in the EN Non-Insulated Wire Ferrules series are supplied for consolidating stripped conductor strands before insertion into a compatible clamp terminal. A wire ferrule consolidates stripped strands before insertion into a compatible clamp terminal. Ferrule size selection depends on conductor cross-section and construction, sleeve length, strip and insertion conditions, target terminal, and crimp profile.
This EN series has a non-insulated sleeve form. It is selected around the stripped conductor bundle and target clamp terminal, so sleeve length and crimp profile remain important even when the conductor cross-section appears to match.
Product features and selection points
- Product use: Consolidating stripped conductor strands before insertion into a compatible clamp terminal.
- Series coverage: 23 listed size and configuration entries with AWG references.
- Selection basis: Do not select by insulation color alone because ferrule color systems are not universal. Confirm the conductor, sleeve dimensions, target terminal and the square, hexagonal, or other crimp profile required by that terminal system.
Key product information
Available models and parameters
Conductor size entries include 1/0 AWG, 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, plus 17 additional size entries in the table. Model references include EN50, EN6, EN4, EN2.5, EN1.5, EN1.0, plus 17 additional model references.
The table below lists model / item and conductor size reference for this series. If your project needs a dimension, stud size, hole spacing, tool, die, torque, rating, or compliance document that is not listed, include the exact model or drawing with your RFQ.
| Model / item | Conductor size reference |
|---|---|
| EN50 | 1/0 AWG |
| EN6 | 10 AWG |
| EN4 | 12 AWG |
| EN2.5 | 14 AWG |
| EN1.5 | 16 AWG |
| EN1.0 | 18 AWG |
| EN35 | 2 AWG |
| EN70 | 2/0 AWG |
| EN0.75 | 20 AWG |
| EN0.5 | 22 AWG |
| EN0.34 | 24 AWG |
| EN150 | 250/300 AWG |
| EN0.25 | 26 AWG |
| EN95 | 3/0 AWG |
| EN185 | 300/350 AWG |
| EN25 | 4 AWG |
| EN120 | 4/0 AWG |
| EN240 | 400 AWG |
| EN325 | 500/600 AWG |
| EN16 | 6 AWG |
| EN400 | 600/750 AWG |
| EN10 | 8 AWG |
| EN500 | 800/1000 AWG |
Selection note: A listed size or configuration is one input, not a complete fit check. Confirm conductor construction, product geometry, mating or mounting details, and the installation method before approval.
How to specify this product
Do not select by insulation color alone because ferrule color systems are not universal. Confirm the conductor, sleeve dimensions, target terminal and the square, hexagonal, or other crimp profile required by that terminal system.
For quotation matching, send the conductor size and construction, the target connection or mating interface, a drawing or model reference, required quantity, packaging instructions, destination market, and any document or test requirement. We will return the available option for your review before order confirmation.
Factory quotation and OEM/ODM support
Voltix manufactures electrical connection products in our own 1,000+ m2 factory, supported by 12+ production operators, more than five years of manufacturing experience, and a five-person export team for OEM/ODM, sampling, documentation and international project communication.
Tell us whether you need a standard catalogue item, packaging changes, private labeling, sample approval, or drawing-based OEM/ODM work. Final dimensions, materials, compatibility, tooling, ratings, standards, certifications, MOQ, and lead time are confirmed against the selected model and quotation documents.
