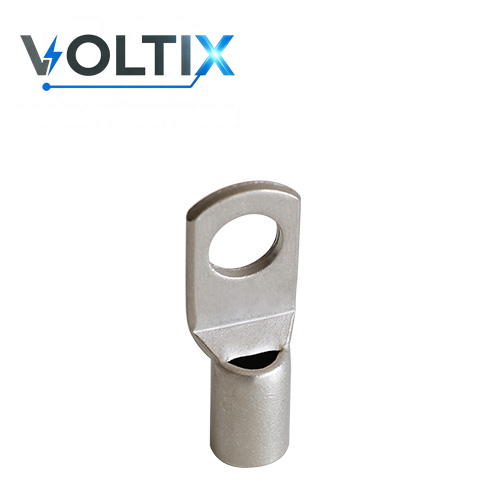

SC Copper Tubular Ring Terminals
Our factory manufactures copper tubular ring terminals in the SC Copper Tubular Ring Terminals series for stud-mounted wire termination using an SC copper tubular ring terminal. This family contains 19 listed options using AWG references. Compare the model, conductor and construction fields below, then send the connection drawing, quantity, packaging and destination requirements for factory matching and quotation.
描述
Product overview
The copper tubular ring terminals in the SC Copper Tubular Ring Terminals series are supplied for stud-mounted wire termination using an SC copper tubular ring terminal. A compression lug combines a conductor barrel with a mounting palm or tongue. The electrical and mechanical joint is formed by controlled deformation of the barrel with a matched terminal, conductor, tool, die, profile, and crimp sequence.
SC terminals combine a tubular copper barrel with a ring tongue. Model and conductor references identify the family, while the target stud or screw must be checked separately from barrel fit.
Product features and selection points
- Product use: Stud-mounted wire termination using an SC copper tubular ring terminal.
- Series coverage: 19 listed size and configuration entries with AWG references.
- Terminal material: Copper.
- Selection basis: Choose the conductor reference first, then check barrel fit, mounting-hole pattern, palm geometry, angle, and equipment drawing. A matching wire gauge alone does not prove that the cable construction or outside diameter will fit the barrel.
Key product information
Available models and parameters
Conductor size entries include 1/0 AWG, 1000/1250 AWG, 12 AWG, 12-10 AWG, 14 AWG, 16 AWG, plus 13 additional size entries in the table. Model references include SC50, SC630, SC4, SC6, SC2.5, SC1.5, plus 13 additional model references.
The table below lists model / item, conductor size reference, and terminal material for this series. If your project needs a dimension, stud size, hole spacing, tool, die, torque, rating, or compliance document that is not listed, include the exact model or drawing with your RFQ.
| Model / item | Conductor size reference | Terminal material |
|---|---|---|
| SC50 | 1/0 AWG | Copper |
| SC630 | 1000/1250 AWG | Copper |
| SC4 | 12 AWG | Copper |
| SC6 | 12-10 AWG | Copper |
| SC2.5 | 14 AWG | Copper |
| SC1.5 | 16 AWG | Copper |
| SC35 | 2 AWG | Copper |
| SC70 | 2/0 AWG | Copper |
| SC150 | 250/300 AWG | Copper |
| SC95 | 3/0 AWG | Copper |
| SC185 | 300/350 AWG | Copper |
| SC25 | 4 AWG | Copper |
| SC120 | 4/0 AWG | Copper |
| SC240 | 400/450 AWG | Copper |
| SC300 | 500 AWG | Copper |
| SC16 | 6 AWG | Copper |
| SC400 | 600/750 AWG | Copper |
| SC10 | 8 AWG | Copper |
| SC500 | 800/1000 AWG | Copper |
Selection note: A listed size or configuration is one input, not a complete fit check. Confirm conductor construction, product geometry, mating or mounting details, and the installation method before approval.
How to specify this product
Choose the conductor reference first, then check barrel fit, mounting-hole pattern, palm geometry, angle, and equipment drawing. A matching wire gauge alone does not prove that the cable construction or outside diameter will fit the barrel.
For quotation matching, send the conductor size and construction, the target connection or mating interface, a drawing or model reference, required quantity, packaging instructions, destination market, and any document or test requirement. We will return the available option for your review before order confirmation.
