AWG Heavy-Duty Copper Cable Lugs
Our factory manufactures AWG copper cable lugs in the AWG Heavy-Duty Copper Cable Lugs series for AWG-referenced cable termination using the heavy-duty copper lug form named in this series. This family contains 9 listed options using AWG references. Compare the model, conductor and construction fields below, then send the connection drawing, quantity, packaging and destination requirements for factory matching and quotation.
描述
Product overview

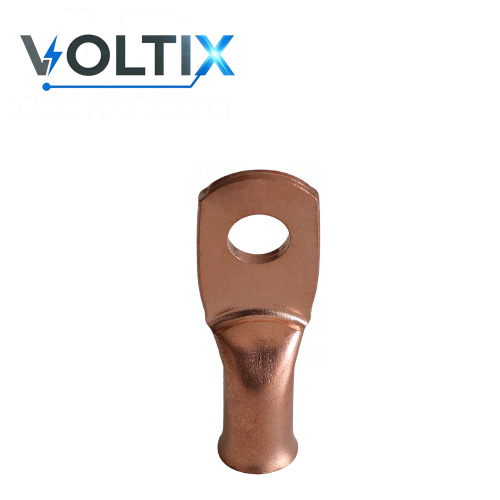

The AWG copper cable lugs in the AWG Heavy-Duty Copper Cable Lugs series are supplied for AWG-referenced cable termination using the heavy-duty copper lug form named in this series. A compression lug combines a conductor barrel with a mounting palm or tongue. The electrical and mechanical joint is formed by controlled deformation of the barrel with a matched terminal, conductor, tool, die, profile, and crimp sequence.
Heavy-duty is part of the supplier family name. It must not be converted into a current, temperature, pull-strength, or environmental claim without a matching model test or specification document.
Product features and selection points
- Product use: AWG-referenced cable termination using the heavy-duty copper lug form named in this series.
- Series coverage: 9 listed size and configuration entries with AWG references.
- Terminal material: Copper.
- Selection basis: Choose the conductor reference first, then check barrel fit, mounting-hole pattern, palm geometry, angle, and equipment drawing. A matching wire gauge alone does not prove that the cable construction or outside diameter will fit the barrel.
Key product information
Available models and parameters
Conductor size entries include 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 3/0 AWG, 4 AWG, plus 3 additional size entries in the table.
The table below lists conductor size reference and terminal material for this series. If your project needs a dimension, stud size, hole spacing, tool, die, torque, rating, or compliance document that is not listed, include the exact model or drawing with your RFQ.
| Conductor size reference | Terminal material |
|---|---|
| 1 AWG | Copper |
| 1/0 AWG | Copper |
| 2 AWG | Copper |
| 2/0 AWG | Copper |
| 3/0 AWG | Copper |
| 4 AWG | Copper |
| 4/0 AWG | Copper |
| 6 AWG | Copper |
| 8 AWG | Copper |
Selection note: A listed size or configuration is one input, not a complete fit check. Confirm conductor construction, product geometry, mating or mounting details, and the installation method before approval.
How to specify this product
Choose the conductor reference first, then check barrel fit, mounting-hole pattern, palm geometry, angle, and equipment drawing. A matching wire gauge alone does not prove that the cable construction or outside diameter will fit the barrel.
For quotation matching, send the conductor size and construction, the target connection or mating interface, a drawing or model reference, required quantity, packaging instructions, destination market, and any document or test requirement. We will return the available option for your review before order confirmation.
Factory quotation and OEM/ODM support
Voltix manufactures electrical connection products in our own 1,000+ m2 factory, supported by 12+ production operators, more than five years of manufacturing experience, and a five-person export team for OEM/ODM, sampling, documentation and international project communication.
Tell us whether you need a standard catalogue item, packaging changes, private labeling, sample approval, or drawing-based OEM/ODM work. Final dimensions, materials, compatibility, tooling, ratings, standards, certifications, MOQ, and lead time are confirmed against the selected model and quotation documents.
