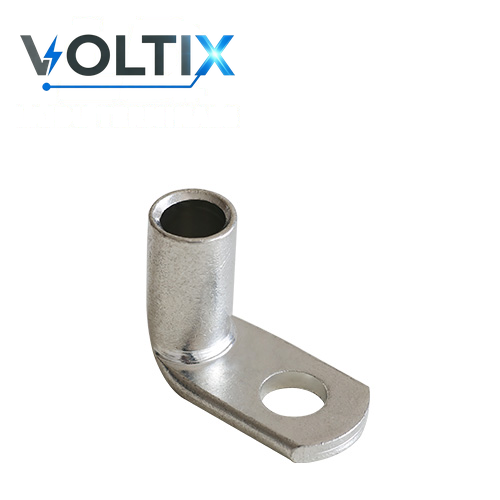

TLK Copper Tube Terminals
Our factory manufactures TLK Copper Tube Terminals for cable termination using TLK copper tube terminals and the listed angle options. This family contains 26 listed options using AWG references. Compare the model, conductor and construction fields below, then send the connection drawing, quantity, packaging and destination requirements for factory matching and quotation.
描述
Product overview
The TLK Copper Tube Terminals series is supplied for cable termination using TLK copper tube terminals and the listed angle options. A compression lug combines a conductor barrel with a mounting palm or tongue. The electrical and mechanical joint is formed by controlled deformation of the barrel with a matched terminal, conductor, tool, die, profile, and crimp sequence.
TLK entries are listed by model, conductor reference, and angle. Use those fields to narrow the series, then confirm the drawing whenever palm dimensions or equipment clearance control the choice.
Product features and selection points
- Product use: Cable termination using TLK copper tube terminals and the listed angle options.
- Series coverage: 26 listed size and configuration entries with AWG references.
- Terminal material: Copper.
- Selection basis: Choose the conductor reference first, then check barrel fit, mounting-hole pattern, palm geometry, angle, and equipment drawing. A matching wire gauge alone does not prove that the cable construction or outside diameter will fit the barrel.
Key product information
Available models and parameters
Conductor size entries include 1/0 AWG, 12-10 AWG, 2 AWG, 2/0 AWG, 250/300 AWG, 3/0 AWG, plus 11 additional size entries in the table. Model references include TLK50, TLK50-90D, TLK6, TLK6-90D, TLK35, TLK35-90D, plus 20 additional model references.
The table below lists model / item, conductor size reference, terminal material, and angle (deg) for this series. If your project needs a dimension, stud size, hole spacing, tool, die, torque, rating, or compliance document that is not listed, include the exact model or drawing with your RFQ.
| Model / item | Conductor size reference | Terminal material | Angle (deg) |
|---|---|---|---|
| TLK50 | 1/0 AWG | Copper | 0 degrees |
| TLK50-90D | 1/0 AWG | Copper | 90 degrees |
| TLK6 | 12-10 AWG | Copper | 0 degrees |
| TLK6-90D | 12-10 AWG | Copper | 90 degrees |
| TLK35 | 2 AWG | Copper | 0 degrees |
| TLK35-90D | 2 AWG | Copper | 90 degrees |
| TLK70 | 2/0 AWG | Copper | 0 degrees |
| TLK70-90D | 2/0 AWG | Copper | 90 degrees |
| TLK150 | 250/300 AWG | Copper | 0 degrees |
| TLK95 | 3/0 AWG | Copper | 0 degrees |
| TLK95-90D | 3/0 AWG | Copper | 90 degrees |
| TLK150-90D | 300 AWG | Copper | 90 degrees |
| TLK185 | 300/350 AWG | Copper | 0 degrees |
| TLK185-90D | 350 AWG | Copper | 90 degrees |
| TLK25 | 4 AWG | Copper | 0 degrees |
| TLK25-90D | 4 AWG | Copper | 90 degrees |
| TLK120 | 4/0 AWG | Copper | 0 degrees |
| TLK120-90D | 4/0 AWG | Copper | 90 degrees |
| TLK240 | 400/450 AWG | Copper | 0 degrees |
| TLK240-90D | 450 AWG | Copper | 90 degrees |
| TLK300 | 500 AWG | Copper | 0 degrees |
| TLK16 | 6 AWG | Copper | 0 degrees |
| TLK16-90D | 6 AWG | Copper | 90 degrees |
| TLK400 | 600/750 AWG | Copper | 0 degrees |
| TLK10 | 8 AWG | Copper | 0 degrees |
| TLK10-90D | 8 AWG | Copper | 90 degrees |
Selection note: A listed size or configuration is one input, not a complete fit check. Confirm conductor construction, product geometry, mating or mounting details, and the installation method before approval.
How to specify this product
Choose the conductor reference first, then check barrel fit, mounting-hole pattern, palm geometry, angle, and equipment drawing. A matching wire gauge alone does not prove that the cable construction or outside diameter will fit the barrel.
For quotation matching, send the conductor size and construction, the target connection or mating interface, a drawing or model reference, required quantity, packaging instructions, destination market, and any document or test requirement. We will return the available option for your review before order confirmation.
Factory quotation and OEM/ODM support
Voltix manufactures electrical connection products in our own 1,000+ m2 factory, supported by 12+ production operators, more than five years of manufacturing experience, and a five-person export team for OEM/ODM, sampling, documentation and international project communication.
Tell us whether you need a standard catalogue item, packaging changes, private labeling, sample approval, or drawing-based OEM/ODM work. Final dimensions, materials, compatibility, tooling, ratings, standards, certifications, MOQ, and lead time are confirmed against the selected model and quotation documents.
