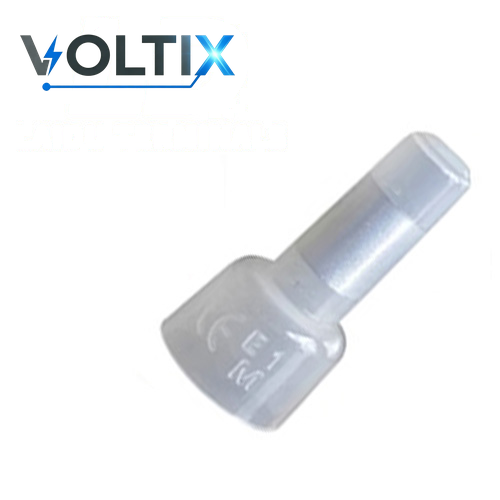

CE Closed-End Crimp Connectors
Our factory manufactures closed end crimp terminal in the CE Closed-End Crimp Connectors series for closed-end wire joining or termination where the exact connector model permits the intended conductor combination. This family contains 4 listed options using AWG references. Compare the model, conductor and construction fields below, then send the connection drawing, quantity, packaging and destination requirements for factory matching and quotation.
描述
Product overview
The closed end crimp terminal in the CE Closed-End Crimp Connectors series are supplied for closed-end wire joining or termination where the exact connector model permits the intended conductor combination. A closed-end connector uses a capped body rather than the open-ended geometry of a butt splice. The number and size of conductors accepted by the connection are model-specific.
The CE family uses a capped closed-end body. Conductor count cannot be inferred from the cap shape or a single AWG label, so the RFQ must identify every conductor entering the connector.
Product features and selection points
- Product use: Closed-end wire joining or termination where the exact connector model permits the intended conductor combination.
- Series coverage: 4 listed size and configuration entries with AWG references.
- Selection basis: State the number of conductors, each conductor size and construction, strip length requirement, insulation requirement, and intended crimp process. A closed-end shape alone does not approve every multi-wire combination.
Key product information
Available models and parameters
Conductor size entries include 12-10 AWG, 16-14 AWG, 22-16 AWG, 8 AWG.
The table below lists conductor size reference for this series. If your project needs a dimension, stud size, hole spacing, tool, die, torque, rating, or compliance document that is not listed, include the exact model or drawing with your RFQ.
| Conductor size reference |
|---|
| 12-10 AWG |
| 16-14 AWG |
| 22-16 AWG |
| 8 AWG |
Selection note: A listed size or configuration is one input, not a complete fit check. Confirm conductor construction, product geometry, mating or mounting details, and the installation method before approval.
How to specify this product
State the number of conductors, each conductor size and construction, strip length requirement, insulation requirement, and intended crimp process. A closed-end shape alone does not approve every multi-wire combination.
For quotation matching, send the conductor size and construction, the target connection or mating interface, a drawing or model reference, required quantity, packaging instructions, destination market, and any document or test requirement. We will return the available option for your review before order confirmation.
Factory quotation and OEM/ODM support
Voltix manufactures electrical connection products in our own 1,000+ m2 factory, supported by 12+ production operators, more than five years of manufacturing experience, and a five-person export team for OEM/ODM, sampling, documentation and international project communication.
Tell us whether you need a standard catalogue item, packaging changes, private labeling, sample approval, or drawing-based OEM/ODM work. Final dimensions, materials, compatibility, tooling, ratings, standards, certifications, MOQ, and lead time are confirmed against the selected model and quotation documents.
