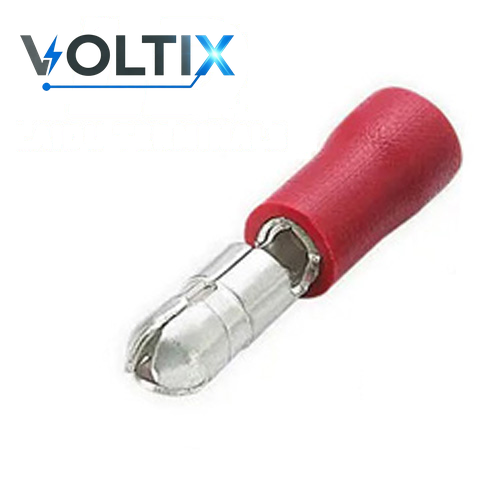

MPD Vinyl-Insulated Male Bullet Connectors
Our factory manufactures vinyl-insulated male bullet connectors in the MPD Vinyl-Insulated Male Bullet Connectors series for removable wire connection to a matching female bullet using a vinyl-insulated male bullet connector. This family contains 3 listed options using AWG references. Compare the model, conductor and construction fields below, then send the connection drawing, quantity, packaging and destination requirements for factory matching and quotation.
描述
Product overview
The vinyl-insulated male bullet connectors in the MPD Vinyl-Insulated Male Bullet Connectors series are supplied for removable wire connection to a matching female bullet using a vinyl-insulated male bullet connector. A bullet connector uses a round male and female mating form, not the flat tab and receptacle geometry of a quick disconnect. Wire fit and mating fit are separate checks.
MPD is the vinyl-insulated male side of a round bullet pair. Select it with the matching female bullet dimensions and the correct wire barrel rather than pairing it with a flat quick-disconnect receptacle.
Product features and selection points
- Product use: Removable wire connection to a matching female bullet using a vinyl-insulated male bullet connector.
- Series coverage: 3 listed size and configuration entries with AWG references.
- Insulation: Vinyl.
- Selection basis: Specify wire size, insulation diameter, male or female side, bullet dimensions, and the mating connector. Do not choose a bullet connector from wire gauge alone.
Key product information
Available models and parameters
Conductor size entries include 12-10 AWG, 16-14 AWG, 22-16 AWG. Model references include MPD5.5, MPD2, MPD1.25.
The table below lists model / item, conductor size reference, and insulation for this series. If your project needs a dimension, stud size, hole spacing, tool, die, torque, rating, or compliance document that is not listed, include the exact model or drawing with your RFQ.
| Model / item | Conductor size reference | Insulation |
|---|---|---|
| MPD5.5 | 12-10 AWG | Vinyl |
| MPD2 | 16-14 AWG | Vinyl |
| MPD1.25 | 22-16 AWG | Vinyl |
Selection note: A listed size or configuration is one input, not a complete fit check. Confirm conductor construction, product geometry, mating or mounting details, and the installation method before approval.
How to specify this product
Specify wire size, insulation diameter, male or female side, bullet dimensions, and the mating connector. Do not choose a bullet connector from wire gauge alone.
For quotation matching, send the conductor size and construction, the target connection or mating interface, a drawing or model reference, required quantity, packaging instructions, destination market, and any document or test requirement. We will return the available option for your review before order confirmation.
Factory quotation and OEM/ODM support
Voltix manufactures electrical connection products in our own 1,000+ m2 factory, supported by 12+ production operators, more than five years of manufacturing experience, and a five-person export team for OEM/ODM, sampling, documentation and international project communication.
Tell us whether you need a standard catalogue item, packaging changes, private labeling, sample approval, or drawing-based OEM/ODM work. Final dimensions, materials, compatibility, tooling, ratings, standards, certifications, MOQ, and lead time are confirmed against the selected model and quotation documents.
