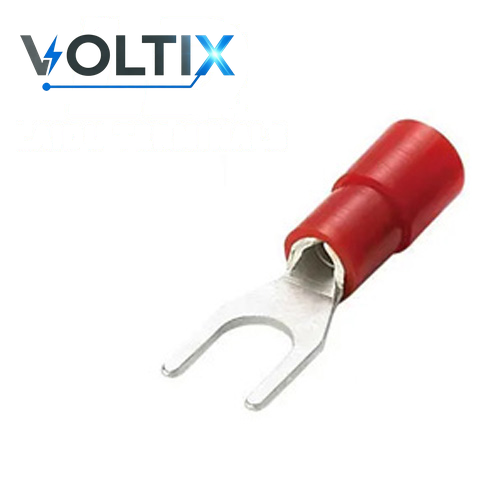

SNY Nylon-Insulated Spade Terminals
Our factory manufactures nylon-insulated spade terminals in the SNY Nylon-Insulated Spade Terminals series for wire termination at a screw or stud using a nylon-insulated open spade tongue. This family contains 3 listed options using AWG references. Compare the model, conductor and construction fields below, then send the connection drawing, quantity, packaging and destination requirements for factory matching and quotation.
描述
Product overview
The nylon-insulated spade terminals in the SNY Nylon-Insulated Spade Terminals series are supplied for wire termination at a screw or stud using a nylon-insulated open spade tongue. Ring and spade terminals use a crimp barrel on the wire side and a tongue on the mounting side. Wire size determines the barrel choice, while stud or screw size determines the tongue opening.
SNY combines nylon insulation with an open spade tongue. The open tongue changes the mounting method compared with a ring terminal, so the equipment instructions must permit that form.
Product features and selection points
- Product use: Wire termination at a screw or stud using a nylon-insulated open spade tongue.
- Series coverage: 3 listed size and configuration entries with AWG references.
- Insulation: Nylon.
- Selection basis: Confirm conductor size and construction, insulation type, stud or screw size, tongue form, and installation access. Ring and open-spade forms should be selected by the equipment connection method, not treated as automatic substitutes.
Key product information
Available models and parameters
Conductor size entries include 12-10 AWG, 16-14 AWG, 22-16 AWG. Model references include SNY5.5, SNY2, SNY1.25.
The table below lists model / item, conductor size reference, and insulation for this series. If your project needs a dimension, stud size, hole spacing, tool, die, torque, rating, or compliance document that is not listed, include the exact model or drawing with your RFQ.
| Model / item | Conductor size reference | Insulation |
|---|---|---|
| SNY5.5 | 12-10 AWG | Nylon |
| SNY2 | 16-14 AWG | Nylon |
| SNY1.25 | 22-16 AWG | Nylon |
Selection note: A listed size or configuration is one input, not a complete fit check. Confirm conductor construction, product geometry, mating or mounting details, and the installation method before approval.
How to specify this product
Confirm conductor size and construction, insulation type, stud or screw size, tongue form, and installation access. Ring and open-spade forms should be selected by the equipment connection method, not treated as automatic substitutes.
For quotation matching, send the conductor size and construction, the target connection or mating interface, a drawing or model reference, required quantity, packaging instructions, destination market, and any document or test requirement. We will return the available option for your review before order confirmation.
Factory quotation and OEM/ODM support
Voltix manufactures electrical connection products in our own 1,000+ m2 factory, supported by 12+ production operators, more than five years of manufacturing experience, and a five-person export team for OEM/ODM, sampling, documentation and international project communication.
Tell us whether you need a standard catalogue item, packaging changes, private labeling, sample approval, or drawing-based OEM/ODM work. Final dimensions, materials, compatibility, tooling, ratings, standards, certifications, MOQ, and lead time are confirmed against the selected model and quotation documents.
