TPE Narrow-Palm Copper Cable Lugs
Our factory manufactures narrow-palm copper cable lugs in the TPE Narrow-Palm Copper Cable Lugs series for cable termination where the drawing calls for the TPE narrow-palm lug form. This family contains 7 listed options using AWG references. Compare the model, conductor and construction fields below, then send the connection drawing, quantity, packaging and destination requirements for factory matching and quotation.
描述
Product overview

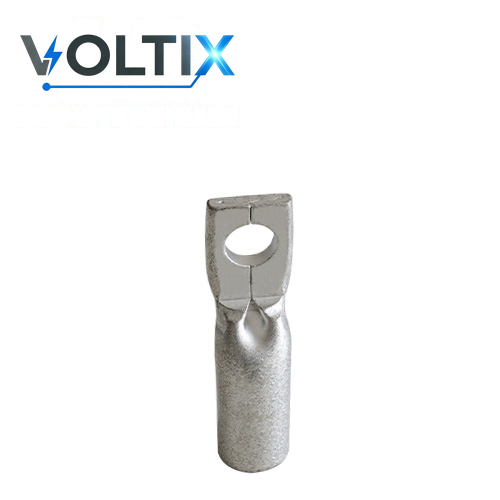

The narrow-palm copper cable lugs in the TPE Narrow-Palm Copper Cable Lugs series are supplied for cable termination where the drawing calls for the TPE narrow-palm lug form. A compression lug combines a conductor barrel with a mounting palm or tongue. The electrical and mechanical joint is formed by controlled deformation of the barrel with a matched terminal, conductor, tool, die, profile, and crimp sequence.
The TPE series uses a narrow-palm form. Narrow palm describes the product geometry, not a universal clearance approval, so the palm width and mounting drawing must be checked against the actual equipment space.
Product features and selection points
- Product use: Cable termination where the drawing calls for the TPE narrow-palm lug form.
- Series coverage: 7 listed size and configuration entries with AWG references.
- Terminal material: Copper.
- Selection basis: Choose the conductor reference first, then check barrel fit, mounting-hole pattern, palm geometry, angle, and equipment drawing. A matching wire gauge alone does not prove that the cable construction or outside diameter will fit the barrel.
Key product information
Available models and parameters
Conductor size entries include 1/0 AWG, 2/0 AWG, 250/300 AWG, 3/0 AWG, 300/350 AWG, 4/0 AWG, plus 1 additional size entries in the table.
The table below lists conductor size reference and terminal material for this series. If your project needs a dimension, stud size, hole spacing, tool, die, torque, rating, or compliance document that is not listed, include the exact model or drawing with your RFQ.
| Conductor size reference | Terminal material |
|---|---|
| 1/0 AWG | Copper |
| 2/0 AWG | Copper |
| 250/300 AWG | Copper |
| 3/0 AWG | Copper |
| 300/350 AWG | Copper |
| 4/0 AWG | Copper |
| 400/450 AWG | Copper |
Selection note: A listed size or configuration is one input, not a complete fit check. Confirm conductor construction, product geometry, mating or mounting details, and the installation method before approval.
How to specify this product
Choose the conductor reference first, then check barrel fit, mounting-hole pattern, palm geometry, angle, and equipment drawing. A matching wire gauge alone does not prove that the cable construction or outside diameter will fit the barrel.
For quotation matching, send the conductor size and construction, the target connection or mating interface, a drawing or model reference, required quantity, packaging instructions, destination market, and any document or test requirement. We will return the available option for your review before order confirmation.
Factory quotation and OEM/ODM support
Voltix manufactures electrical connection products in our own 1,000+ m2 factory, supported by 12+ production operators, more than five years of manufacturing experience, and a five-person export team for OEM/ODM, sampling, documentation and international project communication.
Tell us whether you need a standard catalogue item, packaging changes, private labeling, sample approval, or drawing-based OEM/ODM work. Final dimensions, materials, compatibility, tooling, ratings, standards, certifications, MOQ, and lead time are confirmed against the selected model and quotation documents.
