Product overview

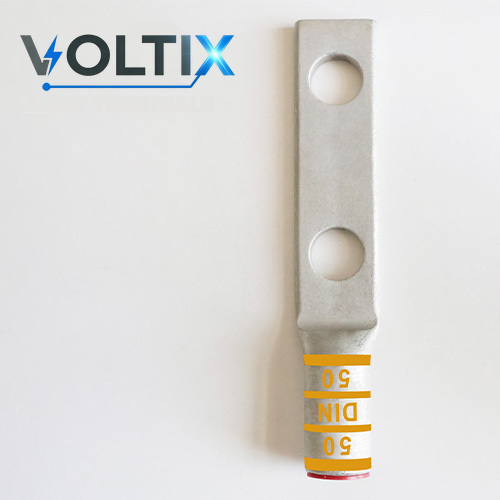

The Copper Two-Hole Compression Lugs series is supplied for terminating a conductor where a copper compression lug and two-hole mounting pattern are specified. A compression lug combines a conductor barrel with a mounting palm or tongue. The electrical and mechanical joint is formed by controlled deformation of the barrel with a matched terminal, conductor, tool, die, profile, and crimp sequence.

This family combines a copper terminal body with a two-hole palm and straight or angled entries. Select the cable side and mounting side independently, then confirm the final drawing before tooling is approved.

Product features and selection points

Product use: Terminating a conductor where a copper compression lug and two-hole mounting pattern are specified.
Series coverage: 69 listed size and configuration entries with AWG and kcmil references.
Terminal material: Copper.
Selection basis: Choose the conductor reference first, then check barrel fit, mounting-hole pattern, palm geometry, angle, and equipment drawing. A matching wire gauge alone does not prove that the cable construction or outside diameter will fit the barrel.

Key product information

Key product information
Product family	Copper Two-Hole Compression Lugs
Listed configurations	69
Conductor size references	AWG and kcmil
Terminal material	Copper
Mounting holes	2
Angle options	0 degrees, 45 degrees, 90 degrees

Available models and parameters

Conductor size entries include 1000 kcmil, 250 kcmil, 300 kcmil, 350 kcmil, 400 kcmil, 450 kcmil, plus 17 additional size entries in the table. The size entries use these color references: White, Yellow, Red, Blue, Brown, Green, Black, Pink, and 3 other listed colors.

The table below lists conductor size reference, terminal material, color, hole count, and angle (deg) for this series. If your project needs a dimension, stud size, hole spacing, tool, die, torque, rating, or compliance document that is not listed, include the exact model or drawing with your RFQ.

Available models and series parameters
Conductor size reference	Terminal material	Color	Hole count	Angle (deg)
1000 kcmil	Copper	White	2	0 degrees
1000 kcmil	Copper	White	2	45 degrees
1000 kcmil	Copper	White	2	90 degrees
250 kcmil	Copper	Yellow	2	0 degrees
250 kcmil	Copper	Yellow	2	45 degrees
250 kcmil	Copper	Yellow	2	90 degrees
300 kcmil	Copper	White	2	0 degrees
300 kcmil	Copper	White	2	45 degrees
300 kcmil	Copper	White	2	90 degrees
350 kcmil	Copper	Red	2	0 degrees
350 kcmil	Copper	Red	2	45 degrees
350 kcmil	Copper	Red	2	90 degrees
400 kcmil	Copper	Blue	2	0 degrees
400 kcmil	Copper	Blue	2	45 degrees
400 kcmil	Copper	Blue	2	90 degrees
450 kcmil	Copper	Brown	2	45 degrees
450 kcmil	Copper	Brown	2	45 degrees
450 kcmil	Copper	Brown	2	90 degrees
500 kcmil	Copper	Brown	2	0 degrees
500 kcmil	Copper	Brown	2	45 degrees
500 kcmil	Copper	Brown	2	90 degrees
600 kcmil	Copper	Green	2	0 degrees
600 kcmil	Copper	Green	2	45 degrees
600 kcmil	Copper	Green	2	90 degrees
650 kcmil	Copper	Black	2	0 degrees
650 kcmil	Copper	Black	2	45 degrees
650 kcmil	Copper	Black	2	90 degrees
700 kcmil	Copper	Pink	2	0 degrees
700 kcmil	Copper	Pink	2	45 degrees
700 kcmil	Copper	Pink	2	90 degrees
750 kcmil	Copper	Black	2	0 degrees
750 kcmil	Copper	Black	2	45 degrees
750 kcmil	Copper	Black	2	90 degrees
800 kcmil	Copper	Orange	2	0 degrees
800 kcmil	Copper	Orange	2	45 degrees
800 kcmil	Copper	Orange	2	90 degrees
900 kcmil	Copper	Yellow	2	90 degrees
900 kcmil	Copper	Yellow	2	90 degrees
900 kcmil	Copper	Yellow	2	90 degrees
1 AWG	Copper	Green	2	0 degrees
1 AWG	Copper	Green	2	45 degrees
1 AWG	Copper	Green	2	90 degrees
1/0 AWG	Copper	Pink	2	0 degrees
1/0 AWG	Copper	Pink	2	45 degrees
1/0 AWG	Copper	Pink	2	90 degrees
14-10 AWG	Copper	Yellow	2	45 degrees
14-10 AWG	Copper	Yellow	2	0 degrees
14-10 AWG	Copper	Yellow	2	90 degrees
2 AWG	Copper	Brown	2	0 degrees
2 AWG	Copper	Brown	2	45 degrees
2 AWG	Copper	Brown	2	90 degrees
2/0 AWG	Copper	Black	2	0 degrees
2/0 AWG	Copper	Black	2	45 degrees
2/0 AWG	Copper	Black	2	90 degrees
3/0 AWG	Copper	Orange	2	0 degrees
3/0 AWG	Copper	Orange	2	45 degrees
3/0 AWG	Copper	Orange	2	90 degrees
4 AWG	Copper	Gray	2	0 degrees
4 AWG	Copper	Gray	2	45 degrees
4 AWG	Copper	Gray	2	90 degrees
4/0 AWG	Copper	Purple	2	0 degrees
4/0 AWG	Copper	Purple	2	45 degrees
4/0 AWG	Copper	Purple	2	90 degrees
6 AWG	Copper	Blue	2	0 degrees
6 AWG	Copper	Blue	2	45 degrees
6 AWG	Copper	Blue	2	90 degrees
8 AWG	Copper	Red	2	0 degrees
8 AWG	Copper	Red	2	45 degrees
8 AWG	Copper	Red	2	90 degrees

Selection note: A listed size or configuration is one input, not a complete fit check. Confirm conductor construction, product geometry, mating or mounting details, and the installation method before approval.

How to specify this product

Choose the conductor reference first, then check barrel fit, mounting-hole pattern, palm geometry, angle, and equipment drawing. A matching wire gauge alone does not prove that the cable construction or outside diameter will fit the barrel.

For quotation matching, send the conductor size and construction, the target connection or mating interface, a drawing or model reference, required quantity, packaging instructions, destination market, and any document or test requirement. We will return the available option for your review before order confirmation.

Factory quotation and OEM/ODM support

Voltix manufactures electrical connection products in our own 1,000+ m² factory, supported by 12+ production operators, more than five years of manufacturing experience, and a five-person export team for OEM/ODM, sampling, documentation and international project communication.

Tell us whether you need a standard catalogue item, packaging changes, private labeling, sample approval, or drawing-based OEM/ODM work. Final dimensions, materials, compatibility, tooling, ratings, standards, certifications, MOQ, and lead time are confirmed against the selected model and quotation documents.
