BV Vinyl-Insulated Butt Splices
Our factory manufactures vinyl-insulated butt splices in the BV Vinyl-Insulated Butt Splices series for inline wire joining with a vinyl-insulated butt-splice form. This family contains 8 listed options using AWG references. Compare the model, conductor and construction fields below, then send the connection drawing, quantity, packaging and destination requirements for factory matching and quotation.
描述
Product overview

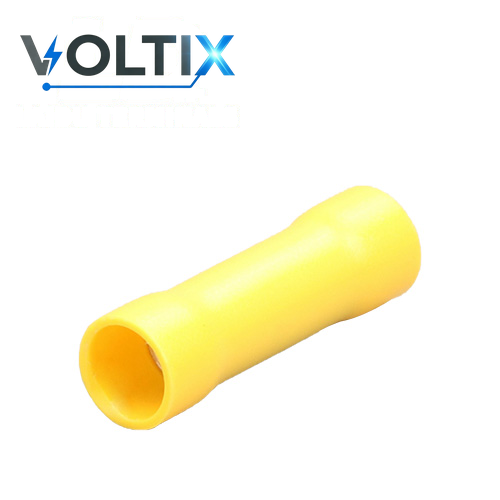

The vinyl-insulated butt splices in the BV Vinyl-Insulated Butt Splices series are supplied for inline wire joining with a vinyl-insulated butt-splice form. A butt splice joins conductor ends inline and has no stud-mounted palm. It should not be treated as a cable lug simply because both products use a compression barrel.
BV butt splices use a vinyl-insulated inline form. Insulation material is shown in the table, while sealing, heat-shrink behavior, temperature rating, and environmental performance remain separate model requirements.
Product features and selection points
- Product use: Inline wire joining with a vinyl-insulated butt-splice form.
- Series coverage: 8 listed size and configuration entries with AWG references.
- Insulation: Vinyl.
- Selection basis: Match the conductor on both sides, barrel fit, strip and insertion requirements, and the exact crimp tooling. Any sealing, heat-shrink, environmental, or electrical rating must come from the selected model documents.
Key product information
Available models and parameters
Conductor size entries include 12-10 AWG, 14-12 AWG, 16-14 AWG, 2 AWG, 22-16 AWG, 4 AWG, plus 2 additional size entries in the table.
The table below lists conductor size reference and insulation for this series. If your project needs a dimension, stud size, hole spacing, tool, die, torque, rating, or compliance document that is not listed, include the exact model or drawing with your RFQ.
| Conductor size reference | Insulation |
|---|---|
| 12-10 AWG | Vinyl |
| 14-12 AWG | Vinyl |
| 16-14 AWG | Vinyl |
| 2 AWG | Vinyl |
| 22-16 AWG | Vinyl |
| 4 AWG | Vinyl |
| 6 AWG | Vinyl |
| 8 AWG | Vinyl |
Selection note: A listed size or configuration is one input, not a complete fit check. Confirm conductor construction, product geometry, mating or mounting details, and the installation method before approval.
How to specify this product
Match the conductor on both sides, barrel fit, strip and insertion requirements, and the exact crimp tooling. Any sealing, heat-shrink, environmental, or electrical rating must come from the selected model documents.
For quotation matching, send the conductor size and construction, the target connection or mating interface, a drawing or model reference, required quantity, packaging instructions, destination market, and any document or test requirement. We will return the available option for your review before order confirmation.
Factory quotation and OEM/ODM support
Voltix manufactures electrical connection products in our own 1,000+ m2 factory, supported by 12+ production operators, more than five years of manufacturing experience, and a five-person export team for OEM/ODM, sampling, documentation and international project communication.
Tell us whether you need a standard catalogue item, packaging changes, private labeling, sample approval, or drawing-based OEM/ODM work. Final dimensions, materials, compatibility, tooling, ratings, standards, certifications, MOQ, and lead time are confirmed against the selected model and quotation documents.
