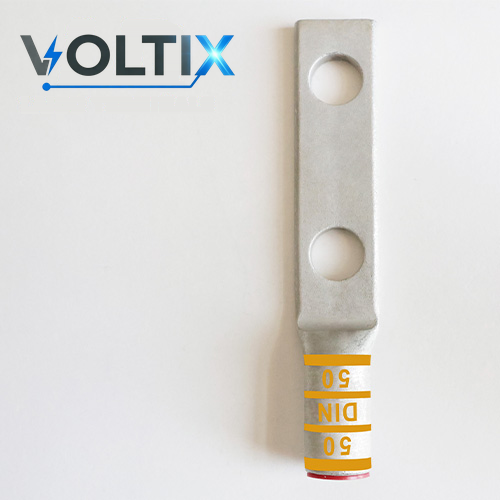

Aluminum Two-Hole Compression Lugs
Our factory manufactures Aluminum Two-Hole Compression Lugs for terminating a conductor where the equipment drawing calls for an aluminum compression lug with two mounting holes. This family contains 13 listed options using AWG and kcmil references. Compare the model, conductor and construction fields below, then send the connection drawing, quantity, packaging and destination requirements for factory matching and quotation.
描述
Product overview
The Aluminum Two-Hole Compression Lugs series is supplied for terminating a conductor where the equipment drawing calls for an aluminum compression lug with two mounting holes. A compression lug combines a conductor barrel with a mounting palm or tongue. The electrical and mechanical joint is formed by controlled deformation of the barrel with a matched terminal, conductor, tool, die, profile, and crimp sequence.
The two-hole aluminum palm is the defining mounting feature of this family. Hole count is separate from conductor size, so the equipment pattern and any hole spacing requirement must be supplied with the cable information.
Product features and selection points
- Product use: Terminating a conductor where the equipment drawing calls for an aluminum compression lug with two mounting holes.
- Series coverage: 13 listed size and configuration entries with AWG and kcmil references.
- Terminal material: Aluminum.
- Selection basis: Choose the conductor reference first, then check barrel fit, mounting-hole pattern, palm geometry, angle, and equipment drawing. A matching wire gauge alone does not prove that the cable construction or outside diameter will fit the barrel.
Key product information
Available models and parameters
Conductor size entries include 250 kcmil, 300 kcmil, 350 kcmil, 400 kcmil, 500 kcmil, 600 kcmil, plus 7 additional size entries in the table. The size entries use these color references: Red, Blue, Yellow, Black, Pink, Green, Brown, Orange, and 3 other listed colors.
The table below lists conductor size reference, terminal material, color, hole count, and angle (deg) for this series. If your project needs a dimension, stud size, hole spacing, tool, die, torque, rating, or compliance document that is not listed, include the exact model or drawing with your RFQ.
| Conductor size reference | Terminal material | Color | Hole count | Angle (deg) |
|---|---|---|---|---|
| 250 kcmil | Aluminum | Red | 2 | 0 degrees |
| 300 kcmil | Aluminum | Blue | 2 | 0 degrees |
| 350 kcmil | Aluminum | Yellow | 2 | 0 degrees |
| 400 kcmil | Aluminum | Black | 2 | 0 degrees |
| 500 kcmil | Aluminum | Pink | 2 | 0 degrees |
| 600 kcmil | Aluminum | Green | 2 | 0 degrees |
| 700 kcmil | Aluminum | Brown | 2 | 0 degrees |
| 750 kcmil | Aluminum | Yellow | 2 | 0 degrees |
| 1/0 AWG | Aluminum | Orange | 2 | 0 degrees |
| 2 AWG | Aluminum | Pink | 2 | 0 degrees |
| 2/0 AWG | Aluminum | Purple | 2 | 0 degrees |
| 3/0 AWG | Aluminum | Ruby | 2 | 0 degrees |
| 4/0 AWG | Aluminum | White | 2 | 0 degrees |
Selection note: A listed size or configuration is one input, not a complete fit check. Confirm conductor construction, product geometry, mating or mounting details, and the installation method before approval.
How to specify this product
Choose the conductor reference first, then check barrel fit, mounting-hole pattern, palm geometry, angle, and equipment drawing. A matching wire gauge alone does not prove that the cable construction or outside diameter will fit the barrel.
For quotation matching, send the conductor size and construction, the target connection or mating interface, a drawing or model reference, required quantity, packaging instructions, destination market, and any document or test requirement. We will return the available option for your review before order confirmation.
Factory quotation and OEM/ODM support
Voltix manufactures electrical connection products in our own 1,000+ m2 factory, supported by 12+ production operators, more than five years of manufacturing experience, and a five-person export team for OEM/ODM, sampling, documentation and international project communication.
Tell us whether you need a standard catalogue item, packaging changes, private labeling, sample approval, or drawing-based OEM/ODM work. Final dimensions, materials, compatibility, tooling, ratings, standards, certifications, MOQ, and lead time are confirmed against the selected model and quotation documents.
