SAM Stacked Mechanical Lugs
Our factory manufactures stacked mechanical lugs in the SAM Stacked Mechanical Lugs series for multi-position mechanical termination using the stacked arrangement represented by the SAM series. This family contains 3 listed options using model and configuration references. Compare the model, conductor and construction fields below, then send the connection drawing, quantity, packaging and destination requirements for factory matching and quotation.
描述
Product overview

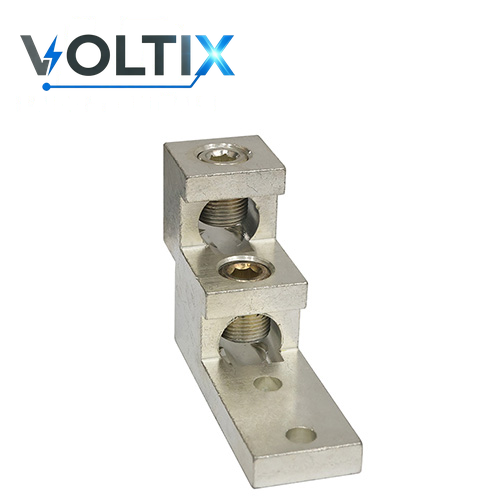

The stacked mechanical lugs in the SAM Stacked Mechanical Lugs series are supplied for multi-position mechanical termination using the stacked arrangement represented by the SAM series. A mechanical lug secures the conductor with a screw, pressure element, or similar mechanical feature instead of a compression crimp. Conductor preparation, screw sequence, and tightening torque are part of the exact product installation method.
SAM is the stacked mechanical-lug family. Stacked describes the physical arrangement; it does not establish the number of accepted conductors, current capacity, mounting pattern, or torque without the selected model data.
Product features and selection points
- Product use: Multi-position mechanical termination using the stacked arrangement represented by the SAM series.
- Series coverage: 3 listed size and configuration entries with model and configuration references.
- Selection basis: Confirm the conductor material, size and count, port arrangement, mounting pattern, and equipment clearance. Torque, dual rating, grounding use, and copper or aluminum compatibility must be checked against the exact model documents.
Key product information
Available models and parameters
Model references include SAM-62.
The table below lists available configuration for this series. If your project needs a dimension, stud size, hole spacing, tool, die, torque, rating, or compliance document that is not listed, include the exact model or drawing with your RFQ.
| Available configuration |
|---|
| Panelboard Stack Lug (SAM-22) |
| Quadruple Wire Mechanical Lug(SAM-42) |
| 6 Conductor Panelboard Lugs SAM-62 |
Selection note: A listed size or configuration is one input, not a complete fit check. Confirm conductor construction, product geometry, mating or mounting details, and the installation method before approval.
How to specify this product
Confirm the conductor material, size and count, port arrangement, mounting pattern, and equipment clearance. Torque, dual rating, grounding use, and copper or aluminum compatibility must be checked against the exact model documents.
For quotation matching, send the conductor size and construction, the target connection or mating interface, a drawing or model reference, required quantity, packaging instructions, destination market, and any document or test requirement. We will return the available option for your review before order confirmation.
Factory quotation and OEM/ODM support
Voltix manufactures electrical connection products in our own 1,000+ m2 factory, supported by 12+ production operators, more than five years of manufacturing experience, and a five-person export team for OEM/ODM, sampling, documentation and international project communication.
Tell us whether you need a standard catalogue item, packaging changes, private labeling, sample approval, or drawing-based OEM/ODM work. Final dimensions, materials, compatibility, tooling, ratings, standards, certifications, MOQ, and lead time are confirmed against the selected model and quotation documents.
