CM Copper Mechanical Lugs & Connectors
Our factory manufactures copper mechanical lugs in the CM Copper Mechanical Lugs & Connectors series for mechanical conductor termination using the CM copper-lug series. This family contains 6 listed options using model and configuration references. Compare the model, conductor and construction fields below, then send the connection drawing, quantity, packaging and destination requirements for factory matching and quotation.
描述
Product overview

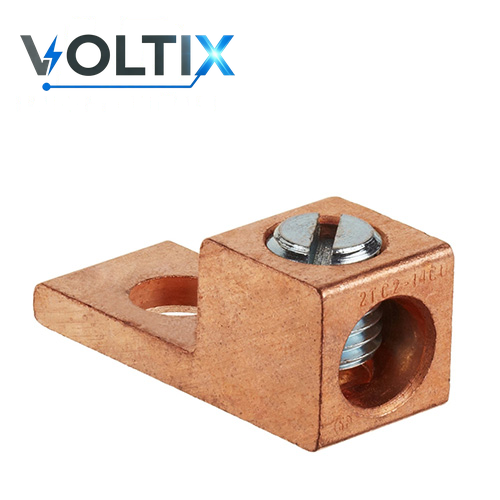

The copper mechanical lugs in the CM Copper Mechanical Lugs & Connectors series are supplied for mechanical conductor termination using the CM copper-lug series. A mechanical lug secures the conductor with a screw, pressure element, or similar mechanical feature instead of a compression crimp. Conductor preparation, screw sequence, and tightening torque are part of the exact product installation method.
CM identifies copper mechanical-lug and connector forms secured without a compression crimp. The model table helps separate the configurations, but tightening torque and permitted conductor combinations remain exact-model values.
Product features and selection points
- Product use: Mechanical conductor termination using the CM copper-lug series.
- Series coverage: 6 listed size and configuration entries with model and configuration references.
- Terminal material: Copper.
- Selection basis: Confirm the conductor material, size and count, port arrangement, mounting pattern, and equipment clearance. Torque, dual rating, grounding use, and copper or aluminum compatibility must be checked against the exact model documents.
Key product information
Available models and parameters
Model references include CM-11, CM-11A, CM-11B, CM-12, CM-12B.
The table below lists model / item, terminal material, and angle (deg) for this series. If your project needs a dimension, stud size, hole spacing, tool, die, torque, rating, or compliance document that is not listed, include the exact model or drawing with your RFQ.
| Model / item | Terminal material | Angle (deg) |
|---|---|---|
| Confirm in RFQ | Copper | Confirm in RFQ |
| CM-11 | Copper | Confirm in RFQ |
| CM-11A | Copper | Confirm in RFQ |
| CM-11B | Copper | Confirm in RFQ |
| CM-12 | Copper | Confirm in RFQ |
| CM-12B | Copper | 90 degrees |
Selection note: A listed size or configuration is one input, not a complete fit check. Confirm conductor construction, product geometry, mating or mounting details, and the installation method before approval.
How to specify this product
Confirm the conductor material, size and count, port arrangement, mounting pattern, and equipment clearance. Torque, dual rating, grounding use, and copper or aluminum compatibility must be checked against the exact model documents.
For quotation matching, send the conductor size and construction, the target connection or mating interface, a drawing or model reference, required quantity, packaging instructions, destination market, and any document or test requirement. We will return the available option for your review before order confirmation.
Factory quotation and OEM/ODM support
Voltix manufactures electrical connection products in our own 1,000+ m2 factory, supported by 12+ production operators, more than five years of manufacturing experience, and a five-person export team for OEM/ODM, sampling, documentation and international project communication.
Tell us whether you need a standard catalogue item, packaging changes, private labeling, sample approval, or drawing-based OEM/ODM work. Final dimensions, materials, compatibility, tooling, ratings, standards, certifications, MOQ, and lead time are confirmed against the selected model and quotation documents.
