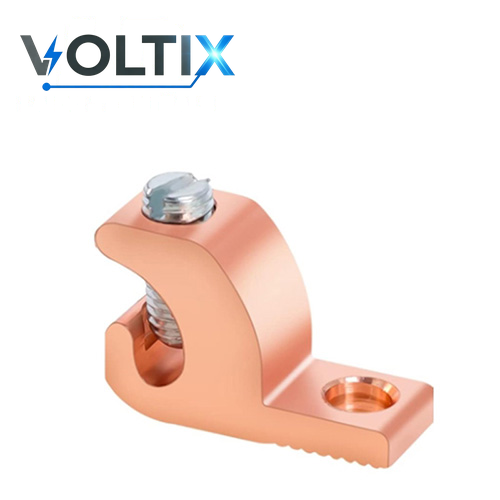

Copper Lay-In Grounding Lugs
Our factory manufactures Copper Lay-In Grounding Lugs for grounding or bonding assemblies that specify a copper lay-in lug and matching installation requirements. This family contains 1 listed options using model and configuration references. Compare the model, conductor and construction fields below, then send the connection drawing, quantity, packaging and destination requirements for factory matching and quotation.
描述
Product overview
The Copper Lay-In Grounding Lugs series is supplied for grounding or bonding assemblies that specify a copper lay-in lug and matching installation requirements. A mechanical lug secures the conductor with a screw, pressure element, or similar mechanical feature instead of a compression crimp. Conductor preparation, screw sequence, and tightening torque are part of the exact product installation method.
This is the copper lay-in grounding-lug form. A grounding name does not replace the equipment, code, conductor, torque, and certification checks required for the final grounding or bonding assembly.
Product features and selection points
- Product use: Grounding or bonding assemblies that specify a copper lay-in lug and matching installation requirements.
- Series coverage: 1 listed size and configuration entries with model and configuration references.
- Terminal material: Copper.
- Selection basis: Confirm the conductor material, size and count, port arrangement, mounting pattern, and equipment clearance. Torque, dual rating, grounding use, and copper or aluminum compatibility must be checked against the exact model documents.
Key product information
Available models and parameters
The available configurations are identified in the table below.
The table below lists available configuration and terminal material for this series. If your project needs a dimension, stud size, hole spacing, tool, die, torque, rating, or compliance document that is not listed, include the exact model or drawing with your RFQ.
| Available configuration | Terminal material |
|---|---|
| Copper Lay-In Lug Connector LAY-IN | Copper |
Selection note: A listed size or configuration is one input, not a complete fit check. Confirm conductor construction, product geometry, mating or mounting details, and the installation method before approval.
How to specify this product
Confirm the conductor material, size and count, port arrangement, mounting pattern, and equipment clearance. Torque, dual rating, grounding use, and copper or aluminum compatibility must be checked against the exact model documents.
For quotation matching, send the conductor size and construction, the target connection or mating interface, a drawing or model reference, required quantity, packaging instructions, destination market, and any document or test requirement. We will return the available option for your review before order confirmation.
Factory quotation and OEM/ODM support
Voltix manufactures electrical connection products in our own 1,000+ m2 factory, supported by 12+ production operators, more than five years of manufacturing experience, and a five-person export team for OEM/ODM, sampling, documentation and international project communication.
Tell us whether you need a standard catalogue item, packaging changes, private labeling, sample approval, or drawing-based OEM/ODM work. Final dimensions, materials, compatibility, tooling, ratings, standards, certifications, MOQ, and lead time are confirmed against the selected model and quotation documents.
