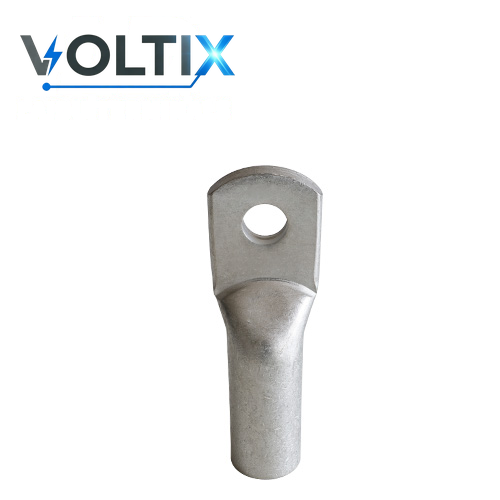

DT Copper Tubular Ring Cable Lugs
Our factory manufactures copper tubular ring cable lugs in the DT Copper Tubular Ring Cable Lugs series for stud-mounted cable termination with a DT tubular ring-lug form. This family contains 19 listed options using AWG references. Compare the model, conductor and construction fields below, then send the connection drawing, quantity, packaging and destination requirements for factory matching and quotation.
描述
Product overview
The copper tubular ring cable lugs in the DT Copper Tubular Ring Cable Lugs series are supplied for stud-mounted cable termination with a DT tubular ring-lug form. A compression lug combines a conductor barrel with a mounting palm or tongue. The electrical and mechanical joint is formed by controlled deformation of the barrel with a matched terminal, conductor, tool, die, profile, and crimp sequence.
The DT series uses a tubular barrel and closed ring palm for stud mounting. The listed conductor reference selects the barrel side; the ring opening and remaining dimensions must match the equipment connection.
Product features and selection points
- Product use: Stud-mounted cable termination with a DT tubular ring-lug form.
- Series coverage: 19 listed size and configuration entries with AWG references.
- Terminal material: Copper.
- Selection basis: Choose the conductor reference first, then check barrel fit, mounting-hole pattern, palm geometry, angle, and equipment drawing. A matching wire gauge alone does not prove that the cable construction or outside diameter will fit the barrel.
Key product information
Available models and parameters
Conductor size entries include 1/0 AWG, 1000/1250 AWG, 12 AWG, 12-10 AWG, 14 AWG, 2 AWG, plus 13 additional size entries in the table. Model references include DT50, DT630, DT4, DT6, DT2.5, DT35, plus 13 additional model references.
The table below lists model / item, conductor size reference, and terminal material for this series. If your project needs a dimension, stud size, hole spacing, tool, die, torque, rating, or compliance document that is not listed, include the exact model or drawing with your RFQ.
| Model / item | Conductor size reference | Terminal material |
|---|---|---|
| DT50 | 1/0 AWG | Copper |
| DT630 | 1000/1250 AWG | Copper |
| DT4 | 12 AWG | Copper |
| DT6 | 12-10 AWG | Copper |
| DT2.5 | 14 AWG | Copper |
| DT35 | 2 AWG | Copper |
| DT70 | 2/0 AWG | Copper |
| DT1.5 | 22-16 AWG | Copper |
| DT150 | 250/300 AWG | Copper |
| DT95 | 3/0 AWG | Copper |
| DT185 | 300/350 AWG | Copper |
| DT25 | 4 AWG | Copper |
| DT120 | 4/0 AWG | Copper |
| DT240 | 400/500 AWG | Copper |
| DT300 | 500 AWG | Copper |
| DT16 | 6 AWG | Copper |
| DT400 | 600/750 AWG | Copper |
| DT10 | 8 AWG | Copper |
| DT500 | 800/1000 AWG | Copper |
Selection note: A listed size or configuration is one input, not a complete fit check. Confirm conductor construction, product geometry, mating or mounting details, and the installation method before approval.
How to specify this product
Choose the conductor reference first, then check barrel fit, mounting-hole pattern, palm geometry, angle, and equipment drawing. A matching wire gauge alone does not prove that the cable construction or outside diameter will fit the barrel.
For quotation matching, send the conductor size and construction, the target connection or mating interface, a drawing or model reference, required quantity, packaging instructions, destination market, and any document or test requirement. We will return the available option for your review before order confirmation.
Factory quotation and OEM/ODM support
Voltix manufactures electrical connection products in our own 1,000+ m2 factory, supported by 12+ production operators, more than five years of manufacturing experience, and a five-person export team for OEM/ODM, sampling, documentation and international project communication.
Tell us whether you need a standard catalogue item, packaging changes, private labeling, sample approval, or drawing-based OEM/ODM work. Final dimensions, materials, compatibility, tooling, ratings, standards, certifications, MOQ, and lead time are confirmed against the selected model and quotation documents.
