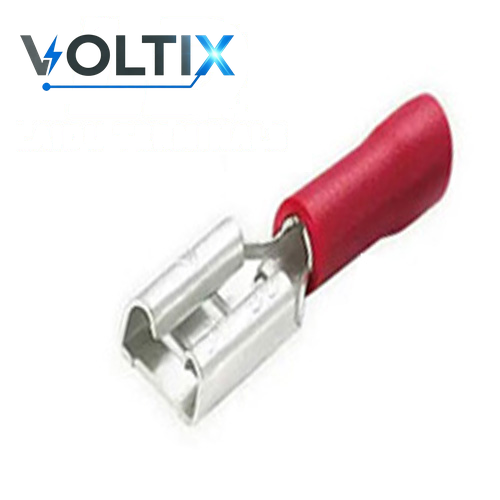

FDD Vinyl-Insulated Female Quick Disconnects
Our factory manufactures vinyl-insulated female quick disconnects in the FDD Vinyl-Insulated Female Quick Disconnects series for removable wire connection to a matching male tab using a vinyl-insulated female receptacle. This family contains 3 listed options using AWG references. Compare the model, conductor and construction fields below, then send the connection drawing, quantity, packaging and destination requirements for factory matching and quotation.
描述
Product overview
The vinyl-insulated female quick disconnects in the FDD Vinyl-Insulated Female Quick Disconnects series are supplied for removable wire connection to a matching male tab using a vinyl-insulated female receptacle. A quick-disconnect connection uses a male tab and a female receptacle. Wire range describes the crimp side; mating depends separately on tab width, tab thickness, contact form, orientation, and retention features.
FDD is the vinyl-insulated female receptacle family. The table covers the crimp-side wire references; the male tab width and thickness still have to be supplied because they are not determined by wire gauge.
Product features and selection points
- Product use: Removable wire connection to a matching male tab using a vinyl-insulated female receptacle.
- Series coverage: 3 listed size and configuration entries with AWG references.
- Insulation: Vinyl.
- Selection basis: Specify wire size, insulation diameter, male or female side, tab width and thickness, straight or flag orientation, and the mating part. The same wire range does not make two disconnects interchangeable.
Key product information
Available models and parameters
Conductor size entries include 12-10 AWG, 16-14 AWG, 22-16 AWG. Model references include FDD5.5, FDD1.25.
The table below lists model / item, conductor size reference, and insulation for this series. If your project needs a dimension, stud size, hole spacing, tool, die, torque, rating, or compliance document that is not listed, include the exact model or drawing with your RFQ.
| Model / item | Conductor size reference | Insulation |
|---|---|---|
| FDD5.5 | 12-10 AWG | Vinyl |
| Confirm in RFQ | 16-14 AWG | Vinyl |
| FDD1.25 | 22-16 AWG | Vinyl |
Selection note: A listed size or configuration is one input, not a complete fit check. Confirm conductor construction, product geometry, mating or mounting details, and the installation method before approval.
How to specify this product
Specify wire size, insulation diameter, male or female side, tab width and thickness, straight or flag orientation, and the mating part. The same wire range does not make two disconnects interchangeable.
For quotation matching, send the conductor size and construction, the target connection or mating interface, a drawing or model reference, required quantity, packaging instructions, destination market, and any document or test requirement. We will return the available option for your review before order confirmation.
Factory quotation and OEM/ODM support
Voltix manufactures electrical connection products in our own 1,000+ m2 factory, supported by 12+ production operators, more than five years of manufacturing experience, and a five-person export team for OEM/ODM, sampling, documentation and international project communication.
Tell us whether you need a standard catalogue item, packaging changes, private labeling, sample approval, or drawing-based OEM/ODM work. Final dimensions, materials, compatibility, tooling, ratings, standards, certifications, MOQ, and lead time are confirmed against the selected model and quotation documents.
