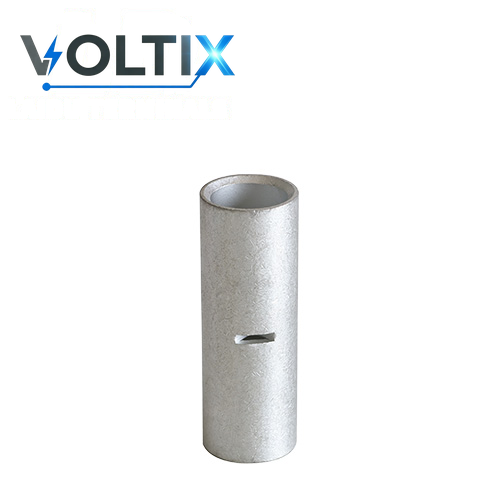

BNT Copper Butt Splice Connectors
Our factory manufactures copper butt splice connectors in the BNT Copper Butt Splice Connectors series for inline conductor joining with a BNT copper butt-splice form. This family contains 13 listed options using AWG references. Compare the model, conductor and construction fields below, then send the connection drawing, quantity, packaging and destination requirements for factory matching and quotation.
描述
Product overview
The copper butt splice connectors in the BNT Copper Butt Splice Connectors series are supplied for inline conductor joining with a BNT copper butt-splice form. A butt splice joins conductor ends inline and has no stud-mounted palm. It should not be treated as a cable lug simply because both products use a compression barrel.
BNT model references identify copper butt-splice options by conductor size. Because the connection is inline, the RFQ should describe both conductor ends and the intended crimp process rather than a stud or palm requirement.
Product features and selection points
- Product use: Inline conductor joining with a BNT copper butt-splice form.
- Series coverage: 13 listed size and configuration entries with AWG references.
- Terminal material: Copper.
- Selection basis: Match the conductor on both sides, barrel fit, strip and insertion requirements, and the exact crimp tooling. Any sealing, heat-shrink, environmental, or electrical rating must come from the selected model documents.
Key product information
Available models and parameters
Conductor size entries include 1/0 AWG, 12-10 AWG, 14-12 AWG, 16-14 AWG, 2 AWG, 2/0 AWG, plus 7 additional size entries in the table. Model references include BNT60, BNT5, BNT3, BNT2, BNT38, BNT70, plus 7 additional model references.
The table below lists model / item, conductor size reference, and terminal material for this series. If your project needs a dimension, stud size, hole spacing, tool, die, torque, rating, or compliance document that is not listed, include the exact model or drawing with your RFQ.
| Model / item | Conductor size reference | Terminal material |
|---|---|---|
| BNT60 | 1/0 AWG | Copper |
| BNT5 | 12-10 AWG | Copper |
| BNT3 | 14-12 AWG | Copper |
| BNT2 | 16-14 AWG | Copper |
| BNT38 | 2 AWG | Copper |
| BNT70 | 2/0 AWG | Copper |
| BNT1 | 22-16 AWG | Copper |
| BNT0.5 | 26-22 AWG | Copper |
| BNT80 | 3/0 AWG | Copper |
| BNT22 | 4 AWG | Copper |
| BNT100 | 4/0 AWG | Copper |
| BNT14 | 6 AWG | Copper |
| BNT8 | 8 AWG | Copper |
Selection note: A listed size or configuration is one input, not a complete fit check. Confirm conductor construction, product geometry, mating or mounting details, and the installation method before approval.
How to specify this product
Match the conductor on both sides, barrel fit, strip and insertion requirements, and the exact crimp tooling. Any sealing, heat-shrink, environmental, or electrical rating must come from the selected model documents.
For quotation matching, send the conductor size and construction, the target connection or mating interface, a drawing or model reference, required quantity, packaging instructions, destination market, and any document or test requirement. We will return the available option for your review before order confirmation.
Factory quotation and OEM/ODM support
Voltix manufactures electrical connection products in our own 1,000+ m2 factory, supported by 12+ production operators, more than five years of manufacturing experience, and a five-person export team for OEM/ODM, sampling, documentation and international project communication.
Tell us whether you need a standard catalogue item, packaging changes, private labeling, sample approval, or drawing-based OEM/ODM work. Final dimensions, materials, compatibility, tooling, ratings, standards, certifications, MOQ, and lead time are confirmed against the selected model and quotation documents.
